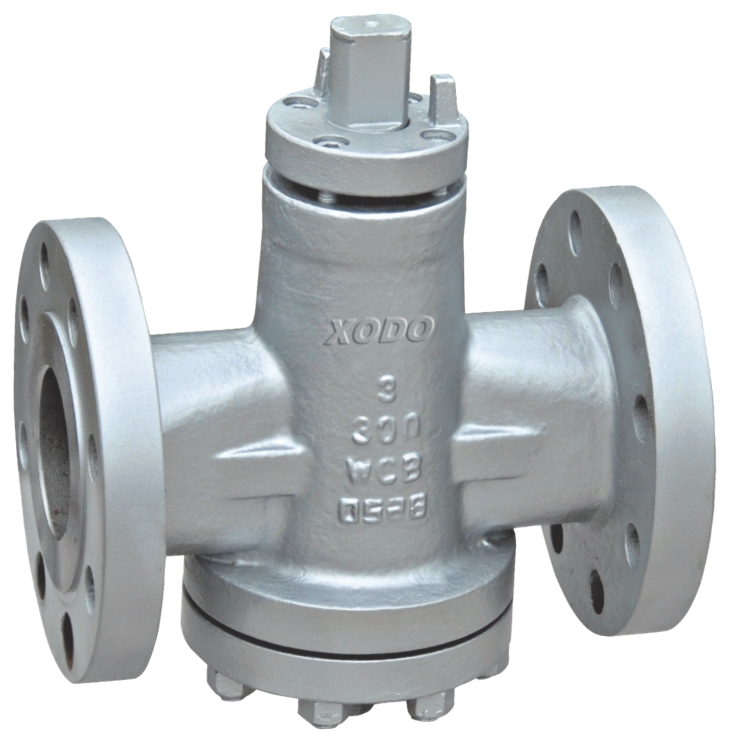

Carbon Steel Flanged Plug Valve

Products Details

Product name:

Carbon Steel Flanged Plug Valve

Product Catalog:

Carbon Steel Plug Valve

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

Carbon Steel Flanged Plug Valve Design Specifications:

Design Features:

Nominal Size Range: NPS 1/2”~ 14”
Pressure Rating: Class 150LB ~ 900LB
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)

Design Specifications:

Design: API 599, API6D
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25

Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels

Body Material:

A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel),

All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.

Quality Assurance (QA):

Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

Quality Control (QC):

The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

Pressure Testing:

Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.

For more detailed information, like design, structure, use field, pros and cons of plug valves, please check this page:
